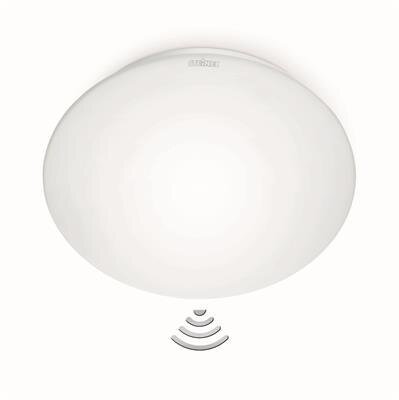

- Steinel Sensor Indoor Lamp RS 16 L.
Steinel Sensor Indoor Lamp RS 16 L.
Delivery time: 3 - 7 business days (also Saturday)
-
Reflection period: 14 working days
-
This product is shipped FREE
- Description
- 738013
- 4007841738013
- STEINEL
- 1,636
- Extreme wide beam >80°
- Other
- No
- IP44
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- No
- A++
- 650 °C - 30 s
- A++
- IK03
- E27
- Other
- None
- Direct
- Symmetric
- A
- Opal glass
- 15 min
- 60 W
- 5 s
- Indoor luminaire
- Yes
- 230 - 240 V
- 2
- II
- -10 - 50 °C
- 2 - 2000 lx
- High Frequency
- No
- Yes
- No
- 60 - 60 W
- No
- Yes
- No
- No
- Not necessary
- None
- Suitable for through wiring
- AC
- No
- Yes
- Yes
- No
- Yes

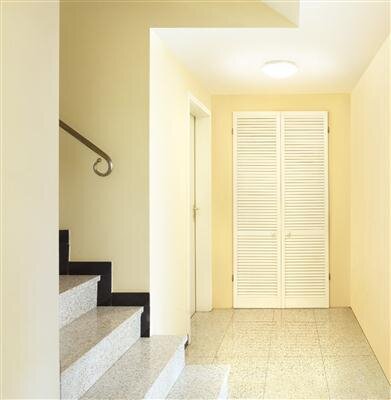

The inexpensive RS 16 L HF sensor lamp (Ø 275 mm) with E27 socket for lamps up to 60 watts is ideally suited for wall and ceiling mounting in corridors, hallways, stairwells or bathrooms. The glass made of mouth-blown, white triopal glass ensures an even and soft light distribution. This conceals - invisible to the eye - intelligent 360 ° HF sensor technology, which detects the smallest movements regardless of temperature and switches the light on at lightning speed and then switches it off again after the individually selected time. Adjustment options: electronic stepless range adjustment from 3 - 8 m. Simple adjustment of time and switch-on level using rotary knobs. And in addition: simple installation since the lamp and the sensor have the same connection - 2 wires and done! Connection option for an additional consumer (eg bath / WC fan). Lamps can be replaced without tools thanks to glass mount with bayonet lock without screws. Base made of high-quality plastic. The bulb is not included in the scope of delivery.
Special characteristics
- Ideal for hall, corridor, staircase and bathroom
- Maximum reach of 8 meters, continuously adjustable
- 3 year guarantee
Download here
the manual
of the RS 16L
Article number: 738013
Barcode: 4007841738013
Brand: STEINEL
Net weight (kg): 1.636
Beam angle: Extremely wide beam> 80 &: 176;
Housing color: White
Connection method: Other
Cover luminaire with thermal insulation material possible: No.
Degree of protection (IP): IP44
Dimmable: No.
Dimmable 0-10 V: No.
Dimmable 1-10 V: No.
Dimmable DALI: No.
Dimming depending on ballast: No.
Dimmable DMX: No.
Dimmable DSI: No.
Dimmable GPRS: No.
Dimmable LineSwitch: No.
Dimmable mains voltage modulation: No.
Manufacturer specific dimming: No.
Dimmable trailing edge: No.
Dimmable leading edge: No.
Dimmable with potentiometer (integrated): No.
Programmable dimming: No.
Dimmable RF: No.
Dimmable Sine Wave Reduction: No.
Dimmable Touch and Dim: No.
Dimmable with push-button: No.
Dimmable Zigbee: No.
Energy efficiency: 235; nce class of the included exchangeable bulb: A ++
Glow wire test according to IEC 60695-2-11: 650 &: 176; C - 30 s
Highest energy efficiency class of the exchangeable lamp: A ++
Impact resistance: IK03
Lamp holder: E27
Lamp type: Other
Light diffuser: None
Light emission: Direct
Light distribution: Symmetrical
Lowest energy efficiency class of the exchangeable lamp: A.
Lighting fixture with limited surface temperature "D-mark": No.
Cover material: Glass opal
Housing material: Plastic
Max. follow-up time: 15 min
Max. system power: 60 W.
Max. range frontal: 1.27 m
Max. range sideways: 1.27 m
Min. follow-up time: 5 s
Execution: Indoor fixture
Not dimmable: Yes
Nom. voltage: 230 - 240 V.
Number of poles: 2
Protection class: II
Nom. ambient temperature according to IEC62722-2-1: -10 - 50 &: 176; C
Response brightness: 2 - 2000 lx
Sensor type: High frequency
Suitable for flush mounting: No.
Suitable for ceiling mounting: Yes
Suitable for emergency lighting: No.
Suitable for lamp power: 60 - 60 W.
Suitable for light line configuration: No.
Suitable for number of lamps: 1
Suitable for surface mounting: Yes
Suitable for pendant suspension: No.
Suitable for wall mounting: Yes
Suitable for VDU workshop according to EN 12464-1: No.
Ballast: Not necessary
Grid version: None
Wiring type: Suitable for through wiring
Voltage type: AC
With air slots: No.
Ballast included: Yes
With light sensor: Yes
With light source: No.
With motion sensor: Yes
Instruction manual:
Energy label:
Other document:
Presentation document / presentation file:
Certificate:
Logo 2:
Article number: 8619-E
Note: Import Taxes and Duties still need to be paid for shipments to Norway, Switzerland
-
"Mooie lamp. Mijn eerste ervaring met radar-techniek in een lamp... Verassend dat"
unknown -
Mooie lamp. Mijn eerste ervaring met radar-techniek in een lamp... Verassend dat het zelfs beweging kan oppakken aan de andere kant van een muur... Is te beinvloeden met de instellingen.
Verpakking: deugdelijk
Instructies... tja is gemaakt voor meerdere type armaturen en dan is de match met de lamp en de hulpmaterialen er niet helemaal... De instructies beschrijft bijvoorbeeld een bijgeleverd plaatje waarmee de sensor "gericht" kan worden. Deze zit er niet bij wat gezien het reageren door de muur best wel handig geweest had kunnen zijn. Verder het eerste wat opvalt is een belangrijk bericht dat het een duitsproduct is die andere kleurcodering gebruikt dan in NL. Goed dat Steinel dat erbij doet, ondanks dat in het armatuur geen interne bedrading zichtbaar is.
