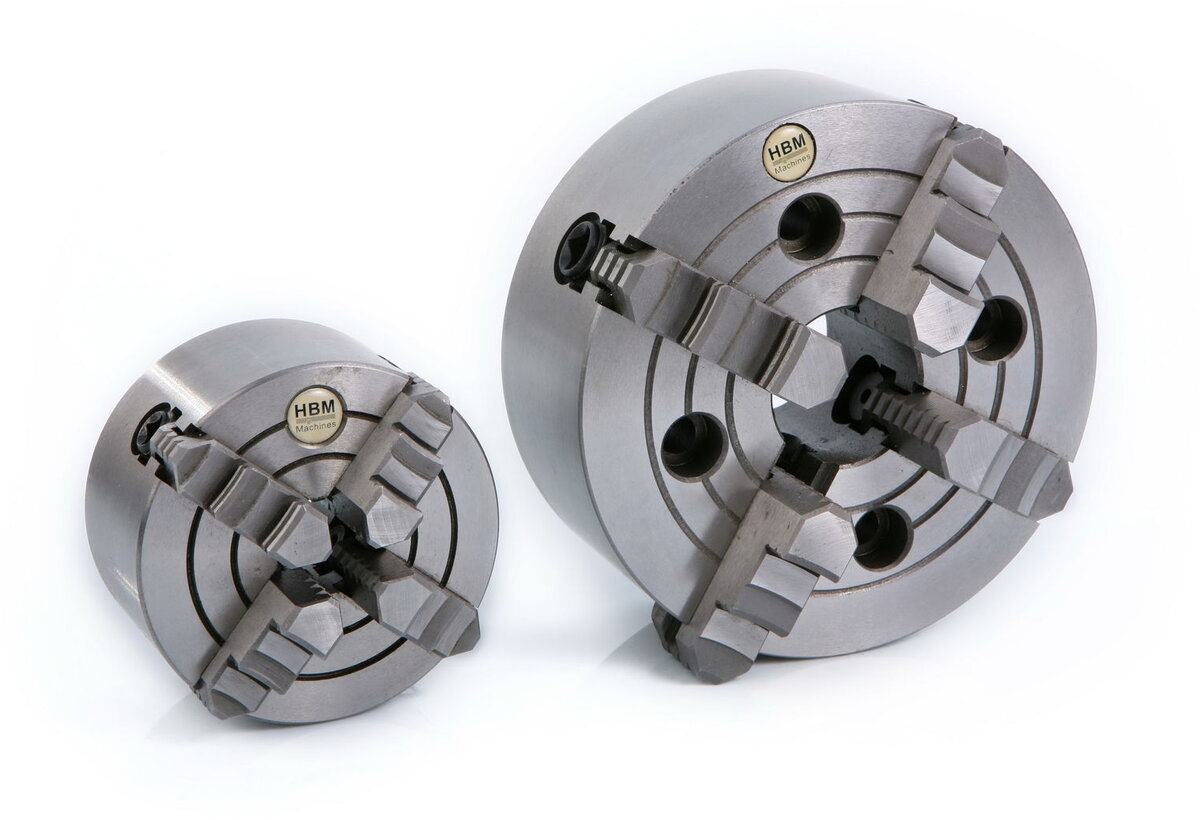

HBM Independent 4 Chucks

Name: HBM Independent 4 Chucks
Price: -10.53 EUR
Availability: InStock
Rating: 7.9 (176 reviews)

from € 49,95 (Inc. 21% VAT - explanation)

Delivery time: 1 - 3 business days (also Saturday)
Cooling-off period: 14 working days
All products at least 1 year warranty
Fast shipping throughout Europe!
Customer rating

In stock

All version (s)

HBM 80 mm. Independent 4 Chuck € 54,99
HBM 125 mm. Independent 4 Chuck out of stock
HBM 200 mm. Independent 4 Chuck € 109,99
HBM 250 mm. Independent 4 Chuck out of stock
HBM 315 mm Independent 4 Chuck out of stock
HBM 400 mm Independent 4 Chuck out of stock
HBM 100 mm Onafhankelijke 4 Klauwplaat out of stock

Description

DIN 6350

Technical data of the HBM 80 mm Independent 4 chuck.

Diameter 80 mm.

Passage 25 mm.

Height of the chuck including jaws 77 mm.

Recording Rear mounting.

Technical data of the HBM 100 mm Independent 4 chuck.

Diameter 100 mm.

Passage 25 mm.

Height of the chuck including jaws 77 mm.

Recording Rear mounting.

Technical data of the HBM 125 mm Independent 4 chuck.

Diameter 125 mm.

Passage 30 mm.

Height of the chuck including jaws 78 mm.

Recording Rear mounting.

Technical data of the HBM 200 mm Independent 4 chuck.

Diameter 200 mm.

Passage 50 mm.

Height of the chuck including jaws 110 mm.

Recording Front and rear mounting.

The HBM Independent 4 Chucks are supplied as standard.

Claw location key with spring.

Buying The HBM Independent 4 Chucks is extremely easy at Toolsidee. You only need to add the product HBM Independent 4 Chucks to the shopping cart and click on checkout. All our products have a minimum factory warranty of 1 year (unless stated otherwise above). Do you have any questions about the HBM Independent 4 Chucks it is always possible to e-mail or call us. You can do this at our contact page. On this page you will also find information about sending the product back.
