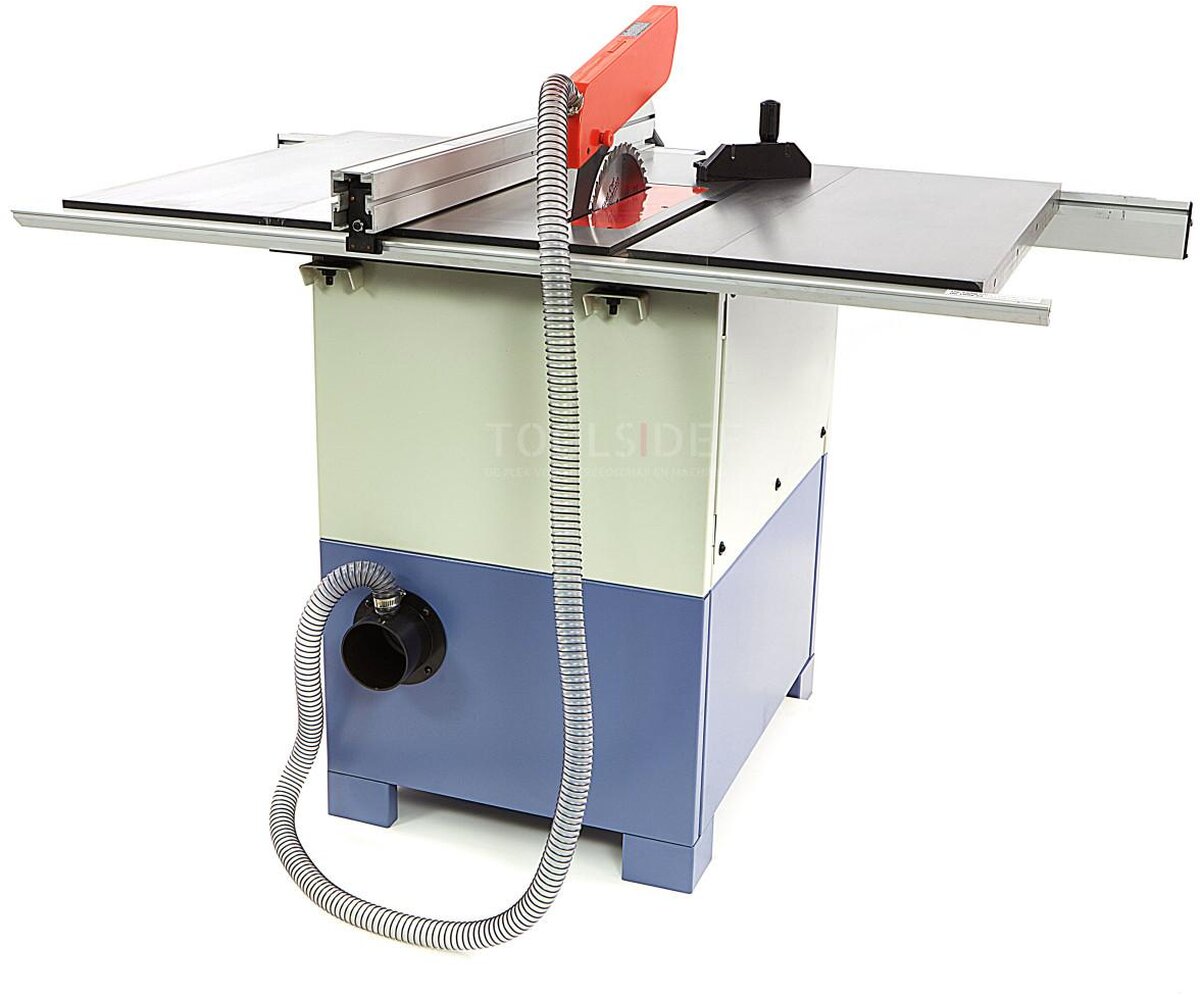

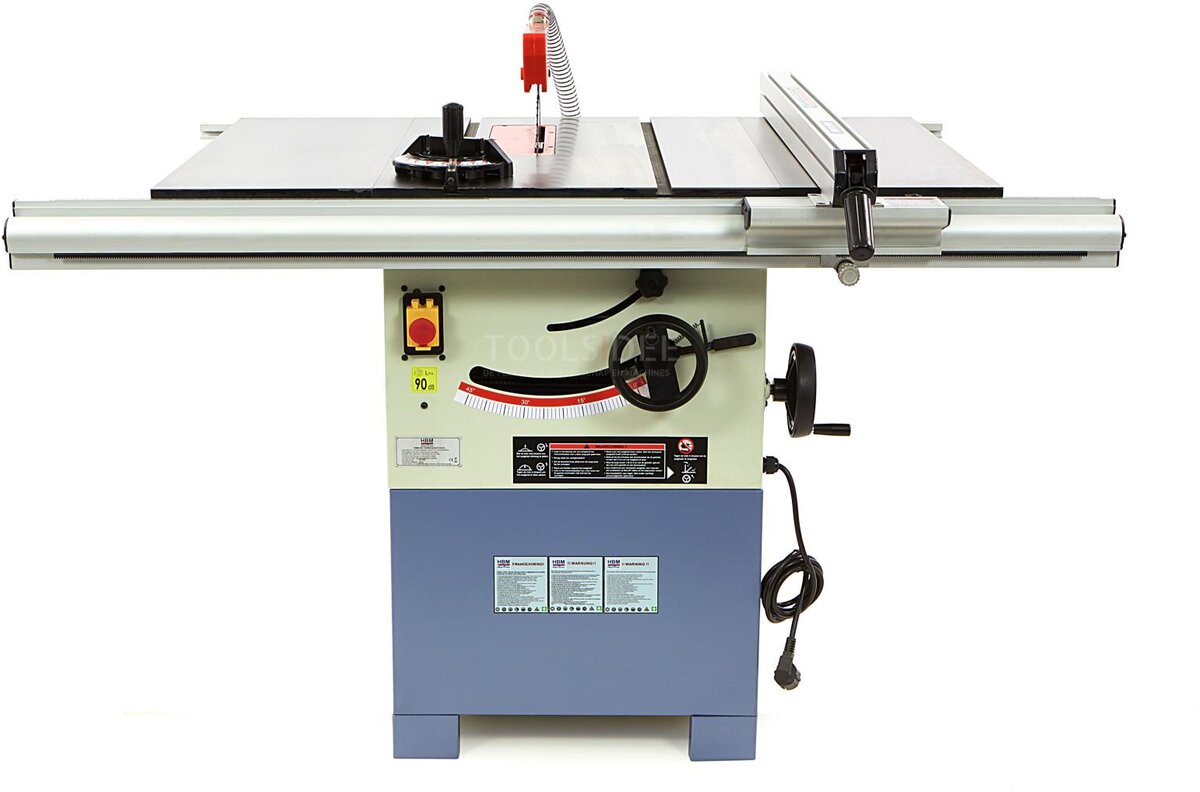

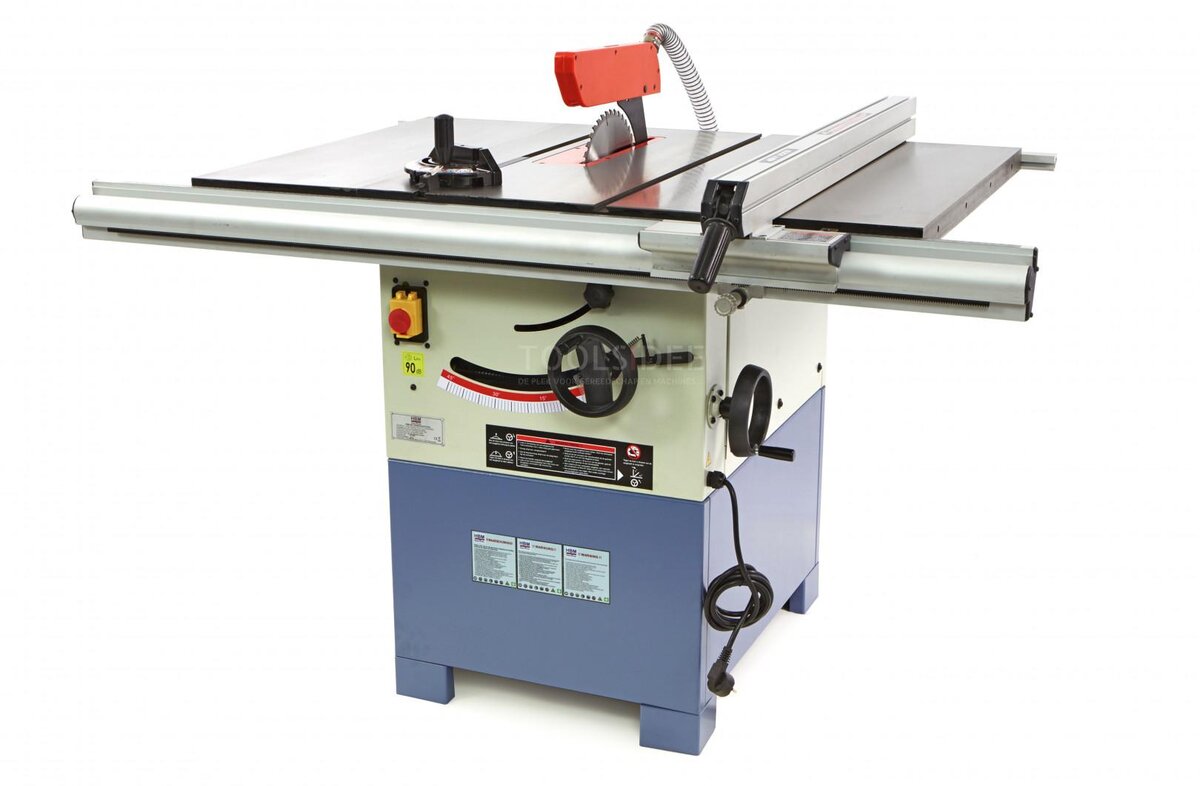

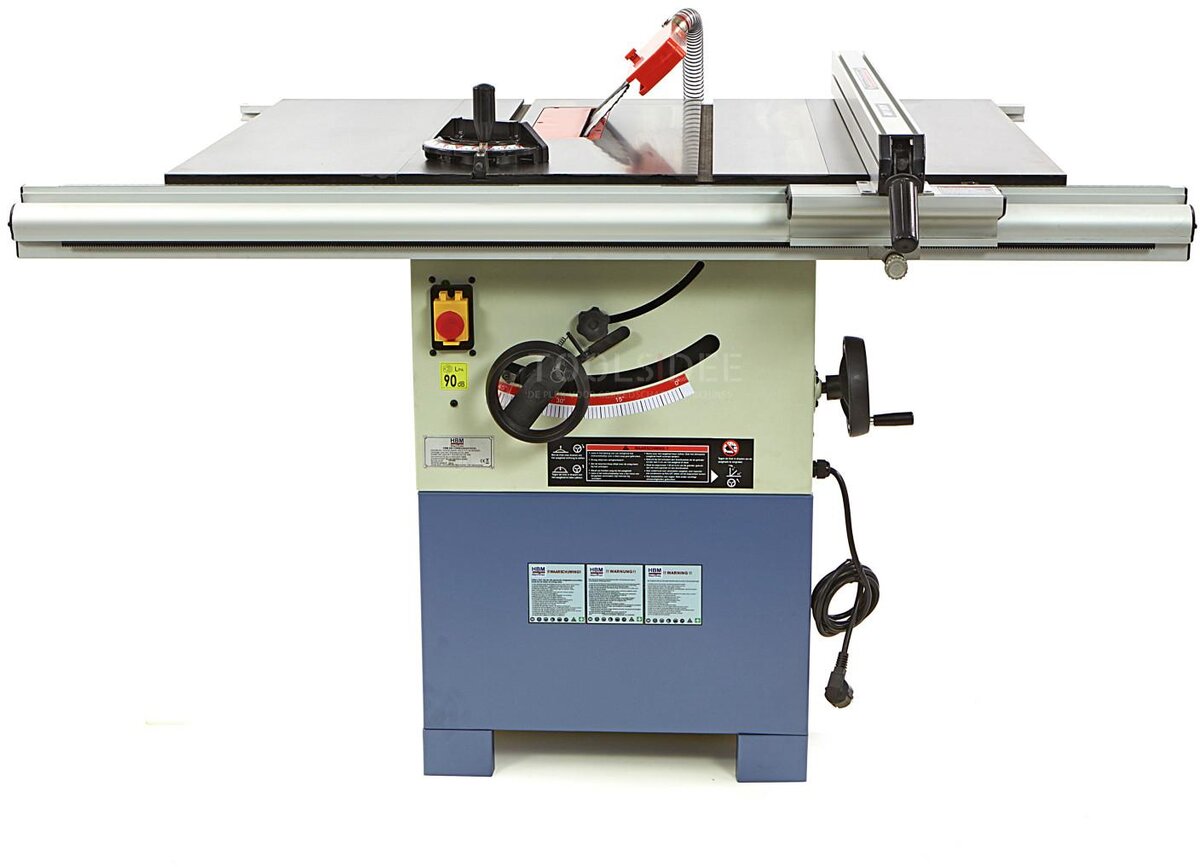

HBM 600 Circular saw table - 230 Volt

The HBM 600 circular saw table is a powerful saw table with a power of 2.2 kW (3 HP) and a voltage of 230 V / 50 Hz. With an no-load speed of 2800 revolutions per minute and a table size of 560 x 800 (L x W), this saw table is suitable for many jobs. The table widening plate of 305 x 800 (L x W) provides extra stability and precision during sawing.

Specifications:

• Weight: 150 kg
• Dimensions
• Voltage: 230 V / 50 Hz
• Power: 2.2 kW (3 HP)
• No-load speed: 2800 rpm
• Table size: 560 x 800 (L x W)
• Table extension plate: 305 x 800 (L x W)
• Work table height: 845 mm
• Circular saw blade diameter: 254 mm
• Spindle bore: 25.4 mm

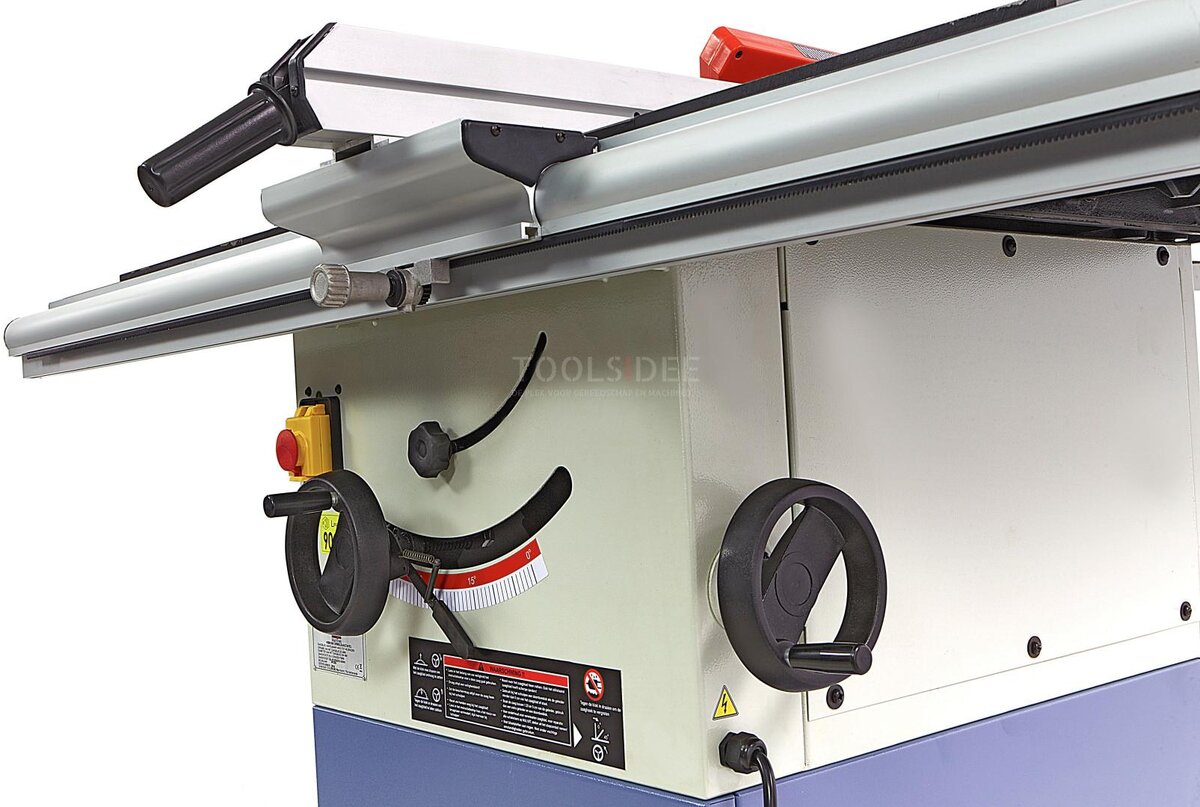

• Tilt range: 0 to 45 degrees
• Cutting depth at 90 degrees: 75 mm
• Cutting depth at 45 degrees: 60 mm

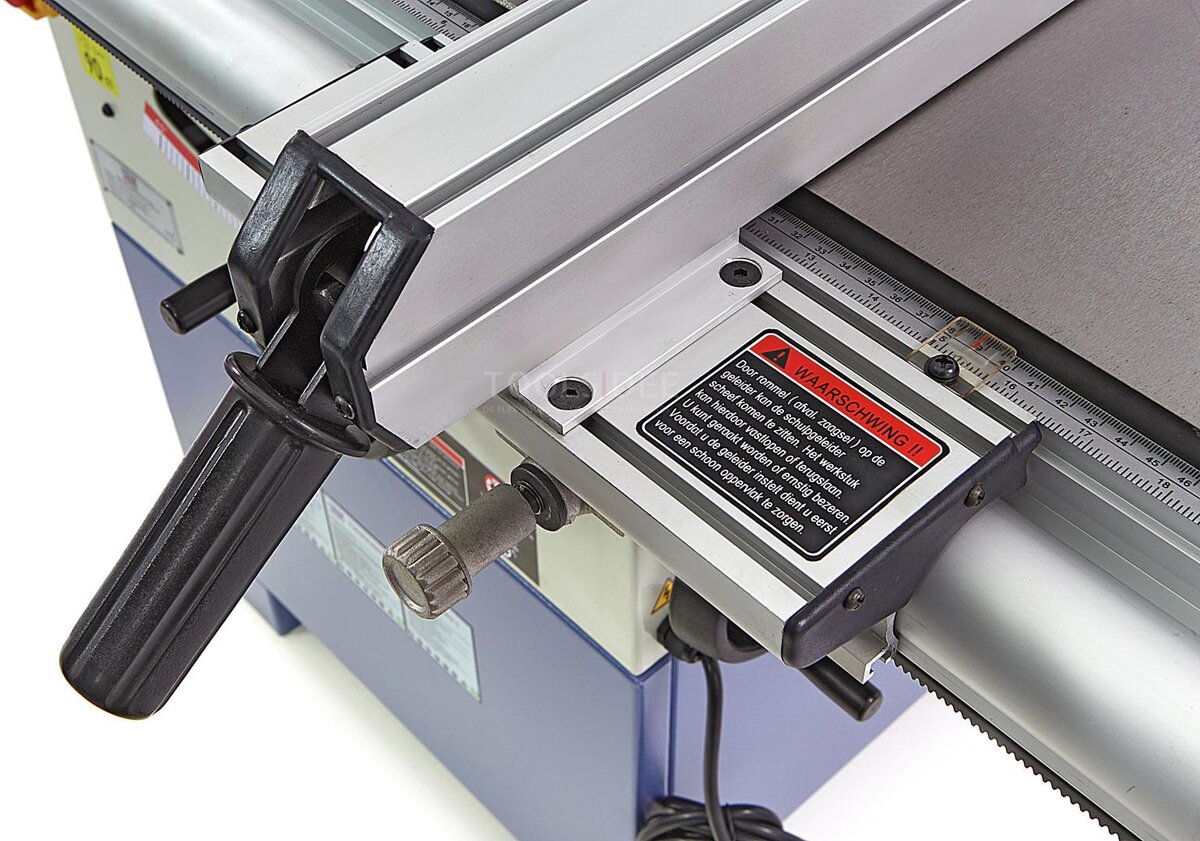

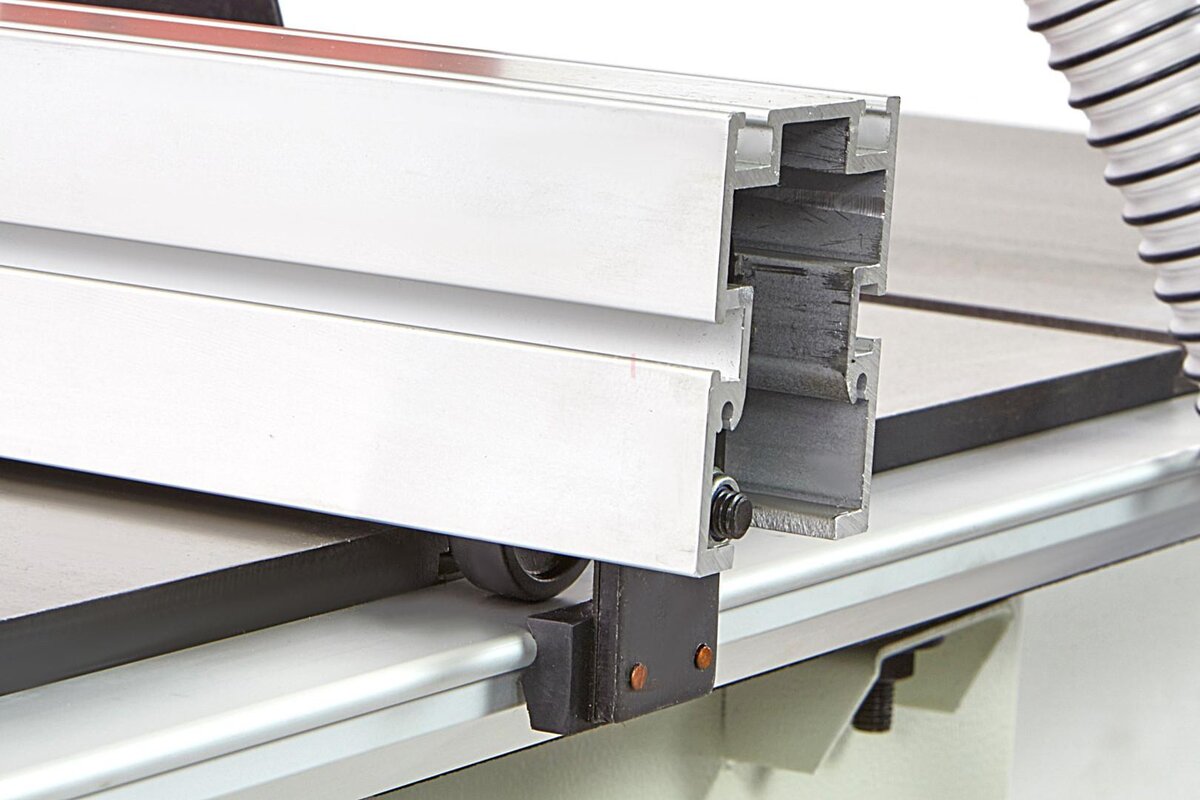

• Maximum distance from the knives to the parallel guide: 645 mm

Other specifications:

• Motor power: 2200 Watt / 3 HP
• Voltage: 230 Volts
• Saw blade speed: 2800 rpm
• Saw blade diameter: 254 mm
• Saw blade bore: 25.4 mm
• Saw blade tiltable: 45 degrees
• Cutting depth: 70 mm
• Cutting depth at 45 degrees: 60 mm
• Table dimensions: 1200 x 800 mm
• Working height: 845 mm
• Weight: Approx. 150 kg
• Packaging dimensions: Box 1: 83 x 63 x 61 cm. Box 2: 151 x 35 x 18 cm

Article number: 18057-E
