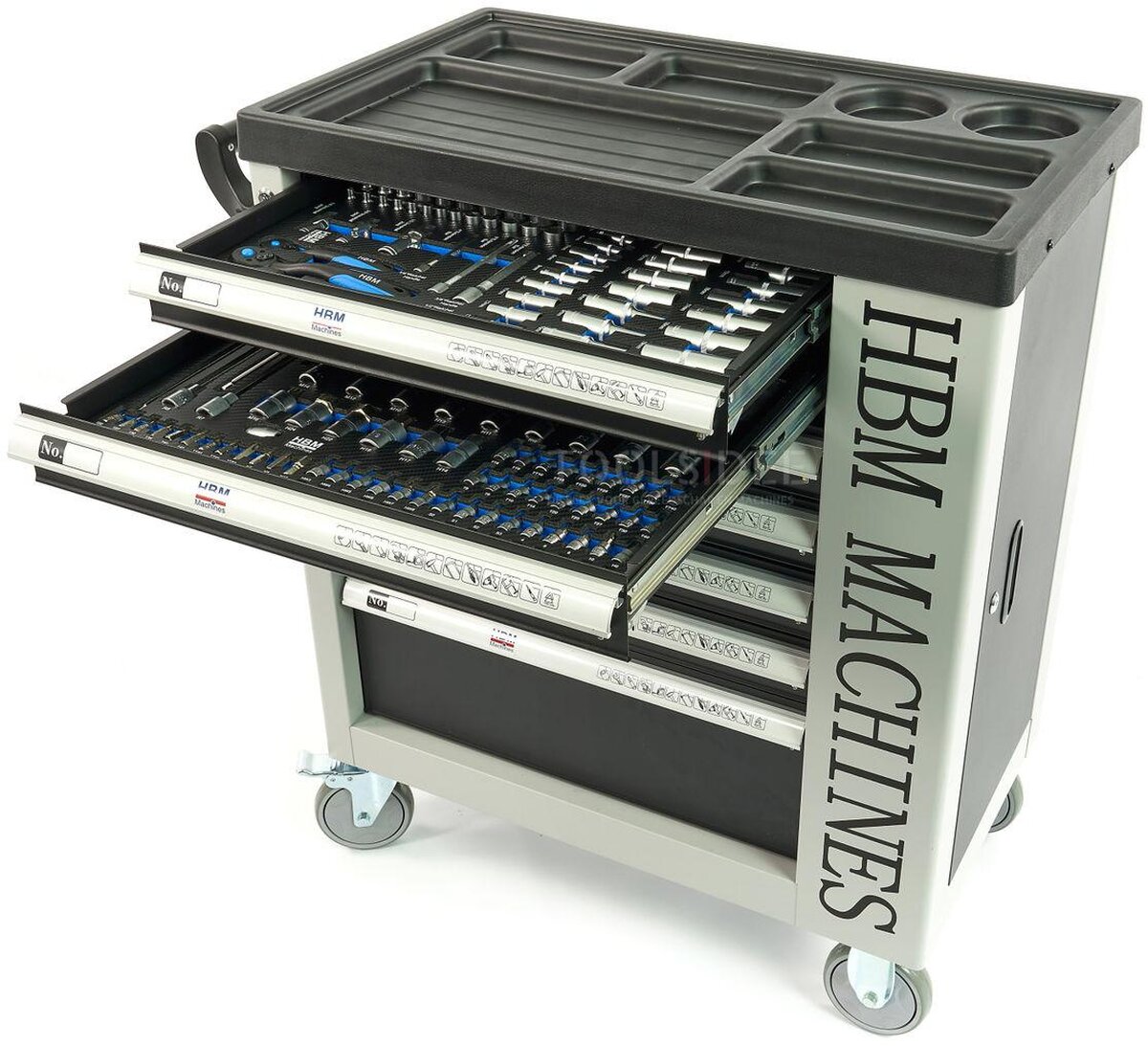

HBM 245 Piece Premium Filled Tool Trolley With Door and Carbon Inlays

Technical data of the HBM 245-piece Premium Filled Tool Trolley With Door and Carbon Inlays

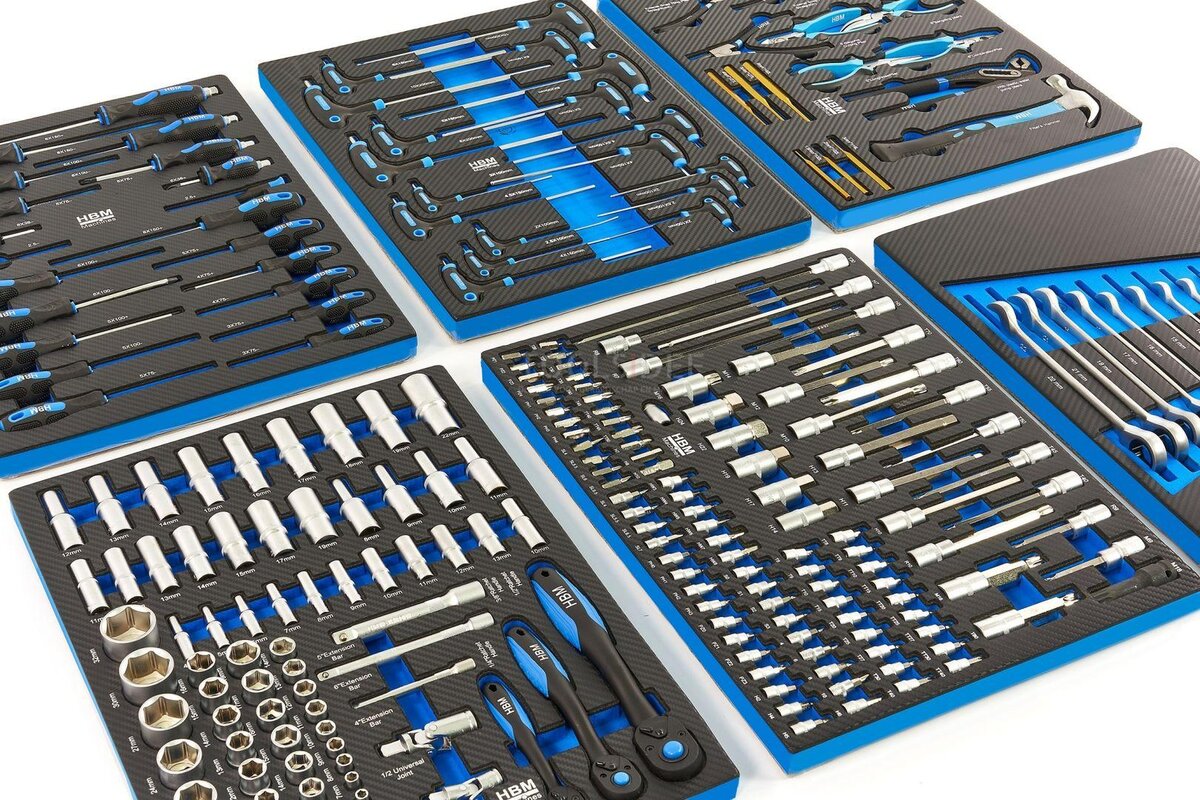

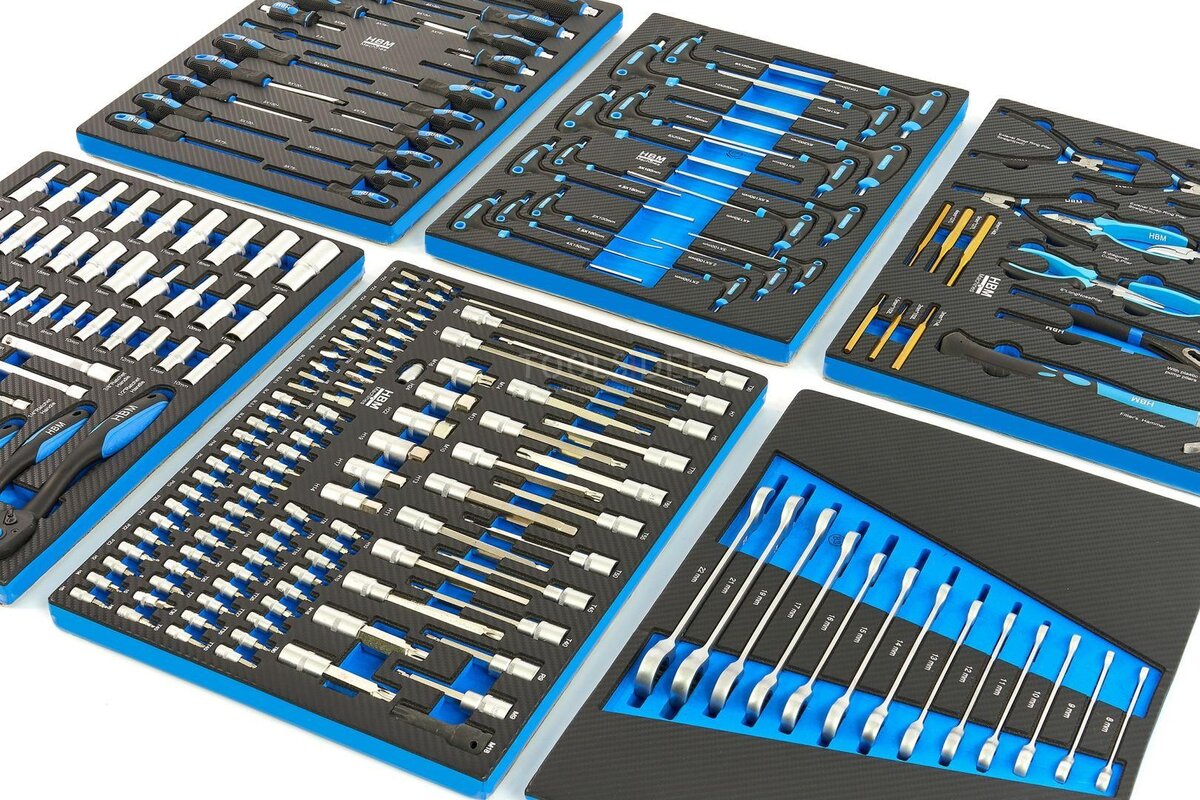

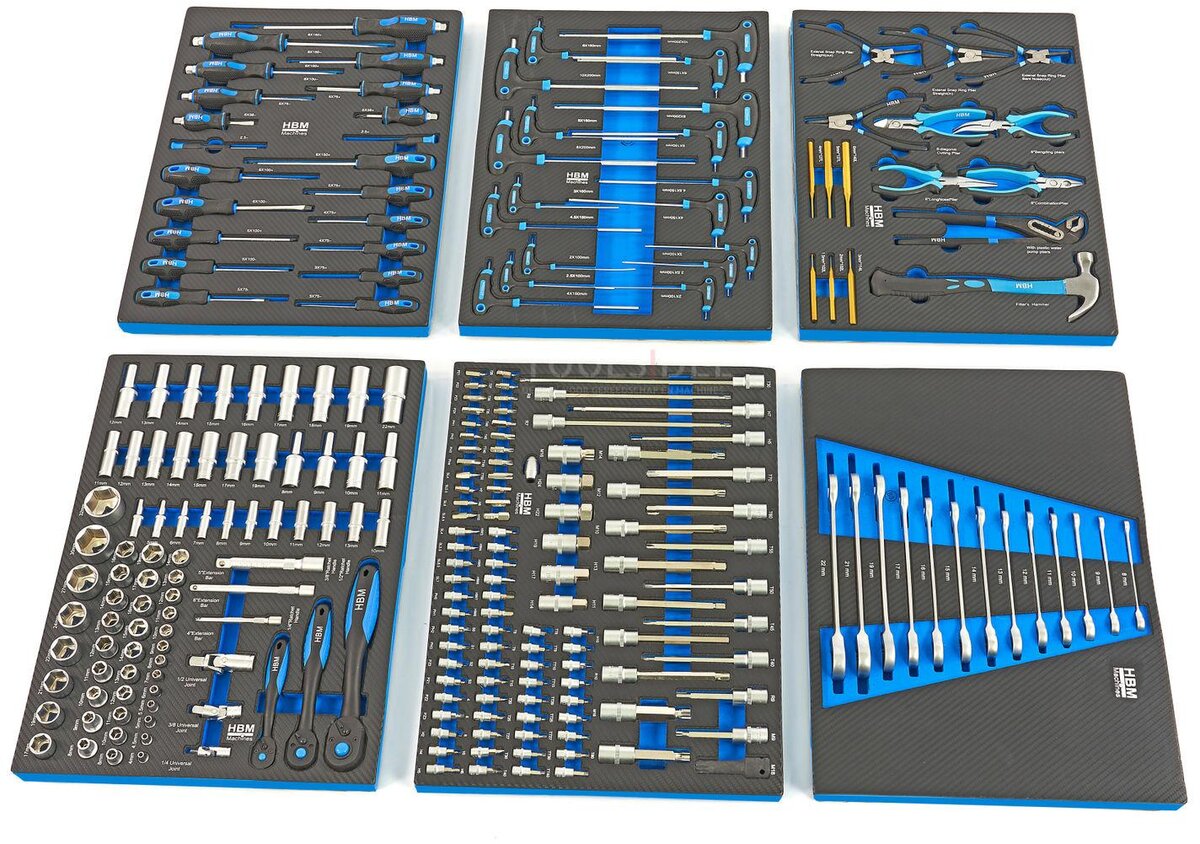

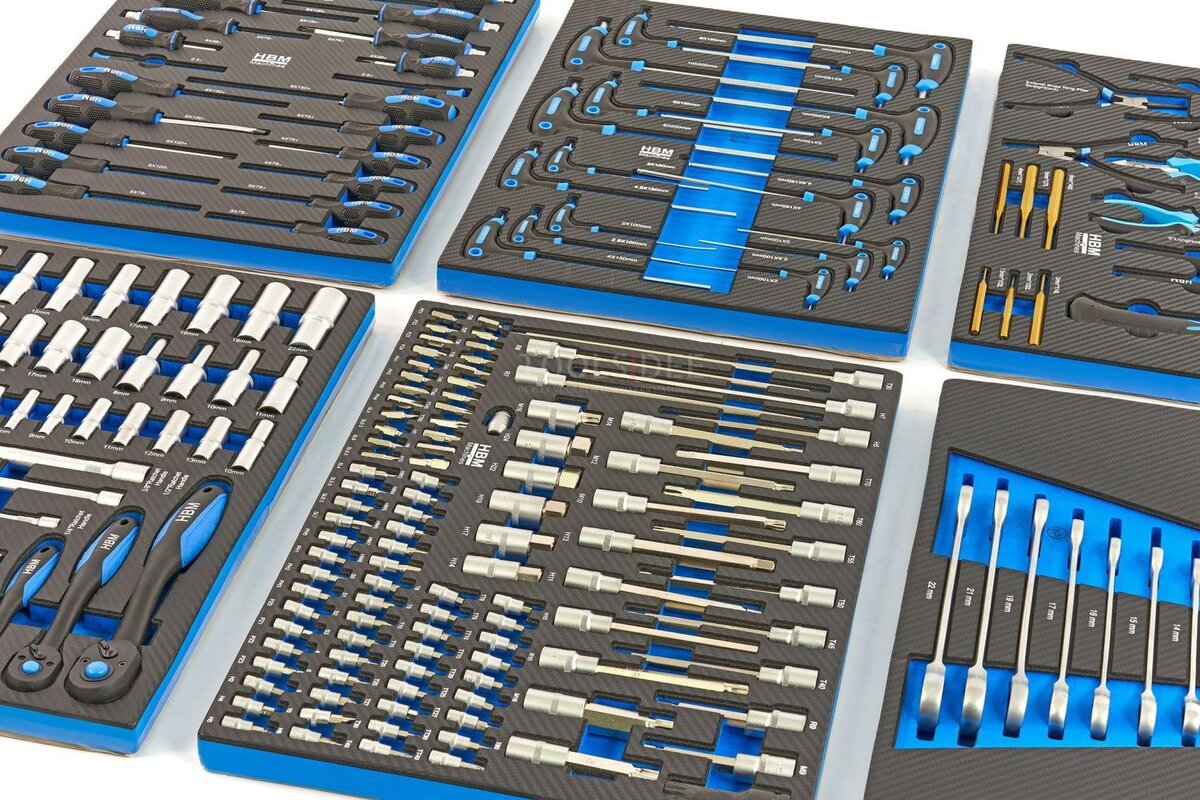

Contents per Drawer

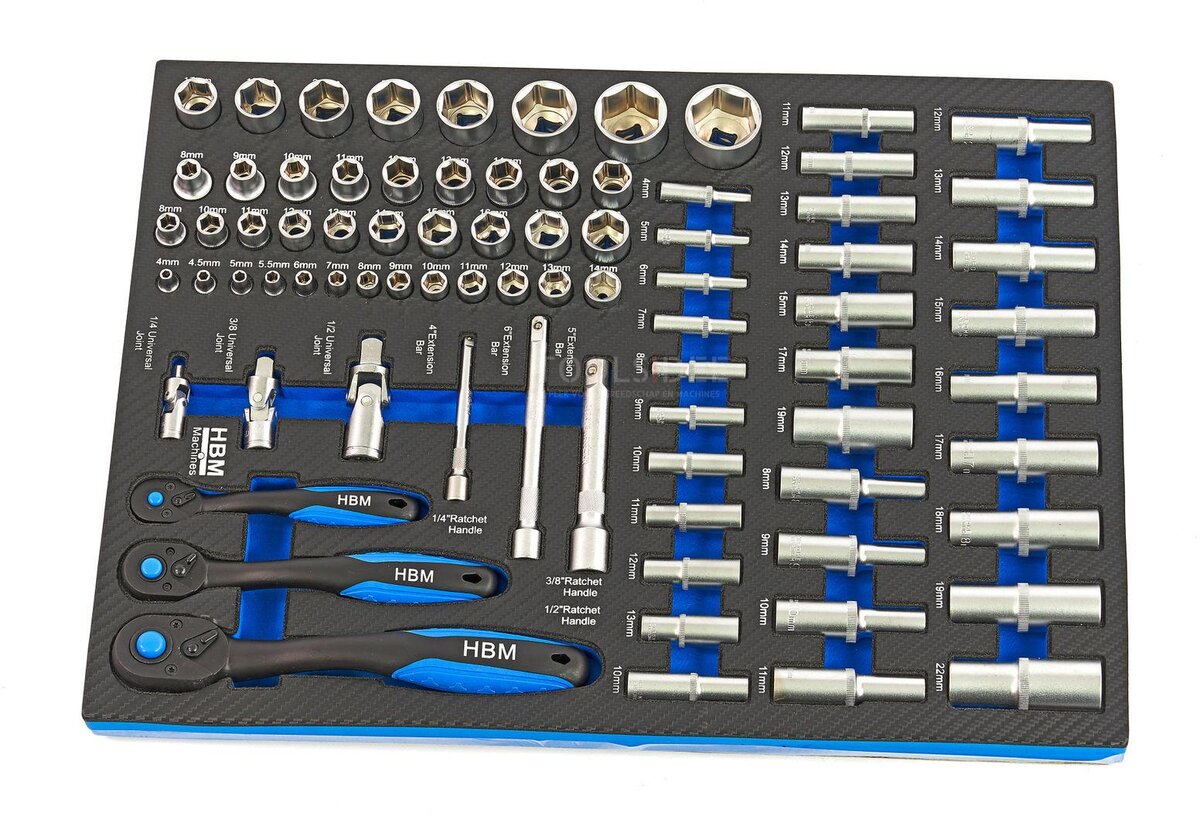

Tray 1

• 1/4" Premium Ratchet
• 1/4" Elbow 45 mm
• 1/4" Extension 100 mm
• 1/4" Sockets 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
• 1/4" Long Sockets 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 mm
• 3/8" Premium Ratchet
• 3/8" Elbow 55 mm
• 3/8" Extension 150 mm
• 3/8" Sockets 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm
• 3/8" Long Sockets 10, 11, 12, 13, 14, 15, 17, 19 mm
• 1/2" Premium Ratchet
• 1/2" Elbow 75 mm
• 1/2" Extension 125 mm
• 1/2" Sockets 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 27, 30, 32 mm
• 1/2" Long Sockets 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22 mm

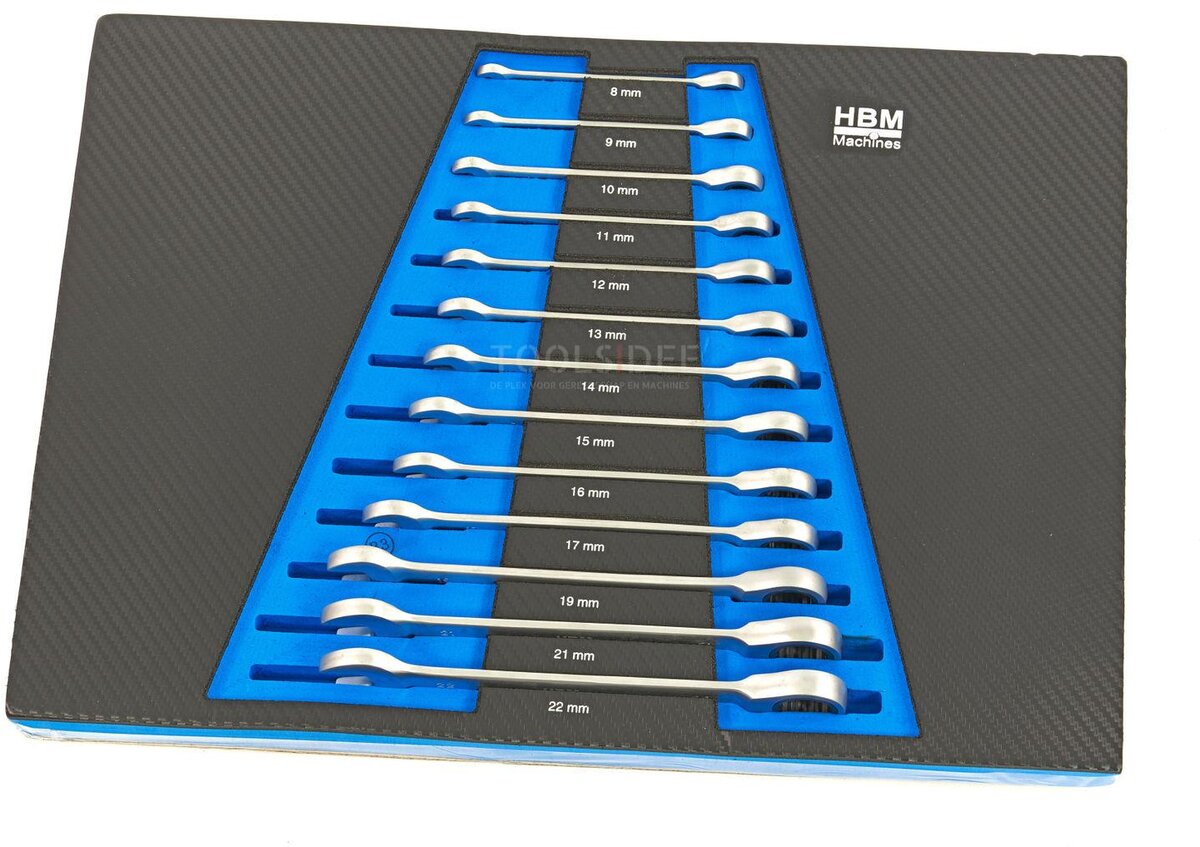

Tray 2

• Ring, Ratchet, Open-end wrench set Consisting of sizes 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22 mm

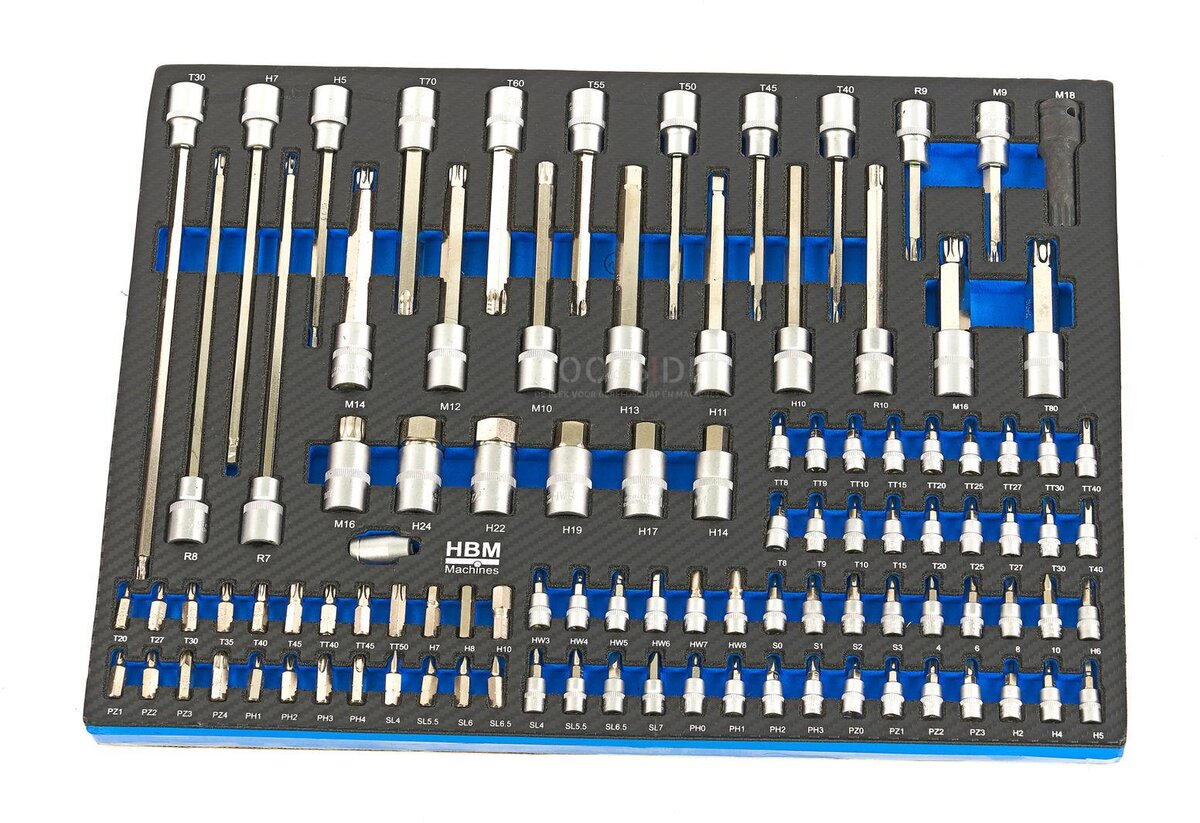

Tray 3

• 1/4 inch Recording bits (TT8, TT9, TT110, TT20, TT25, TT27, TT30, TT40)
• 1/4 inch Recording bits (T8, T9, T10, T15, T20, T25, T27, T30, T40)
• 1/4 inch Recording bits (HW3, HW4, HW5, HW6, HW7, HW8)
• 1/4 inch Recording bits (S0, S1, S2, S3, S4)
• 1/4 inch Recording bits (V6, V8, V10)
• 1/4 inch Recording bits (H6)
• 1/4 inch Recording bits (FD4, FD5.5, FD6, FD7)
• 1/4 inch Recording bits (PH1, PH2, PH3)
• 1/4 inch Recording bits (PZ0, PZ1, PZ2, PZ3)
• 1/4 inch Recording bits (H2, H4, H5)
• 8mm Recording bits (PZ1, PZ2, PZ3, PZ4)
• 8mm Recording bits (PH1, PH2, PH3, PH4)
• 8mm Recording bits (T20, T27, T30, T35, T40, T40, T45, T45)
• 8mm Recording bits (SL 4, SL5.5, SL6, SL6.5)
• 8mm Hexagon socket bits (7, 8, 10 mm)
• 1/2 inch recording bits (M18 Spline (POWER)
• 1/2 inch recording bits (H14, H17, H19, H22, H24)
• 1/2 inch recording bits (M16 Spline)
• 1/2 inch recording bits (M16 Spline 100 mm long)
• 1/2 inch recording bits (T80 - 100 mm long)
• 1/2 inch recording bits (M9, M16 - 100 mm long)
• 1/2 inch recording bits (R9 - 100 mm long)
• 1/2 inch recording bits (R10 - 140 mm long)
• 1/2 inch recording bits (T40, T45, T50, T55, T60, T70 - 140 mm long)
• 1/2 inch recording bits (H10, H11, H13 - 140 mm long)
• 1/2 inch recording bits (M10, M12, M14 - 140 mm long)
• 1/2 inch recording bits (H5 - 160 mm long)
• 1/2 inch recording bits (H7 - 230 mm long)
• 1/2 inch recording bits (R7, R8 - 230 mm long)
• 1/2 inch recording bits (H7 - 230 mm long)
• 1/2 inch recording bits (T30 - 300 mm long)
• 1/2 inch Adapter (to 10mm square)

Tray 4

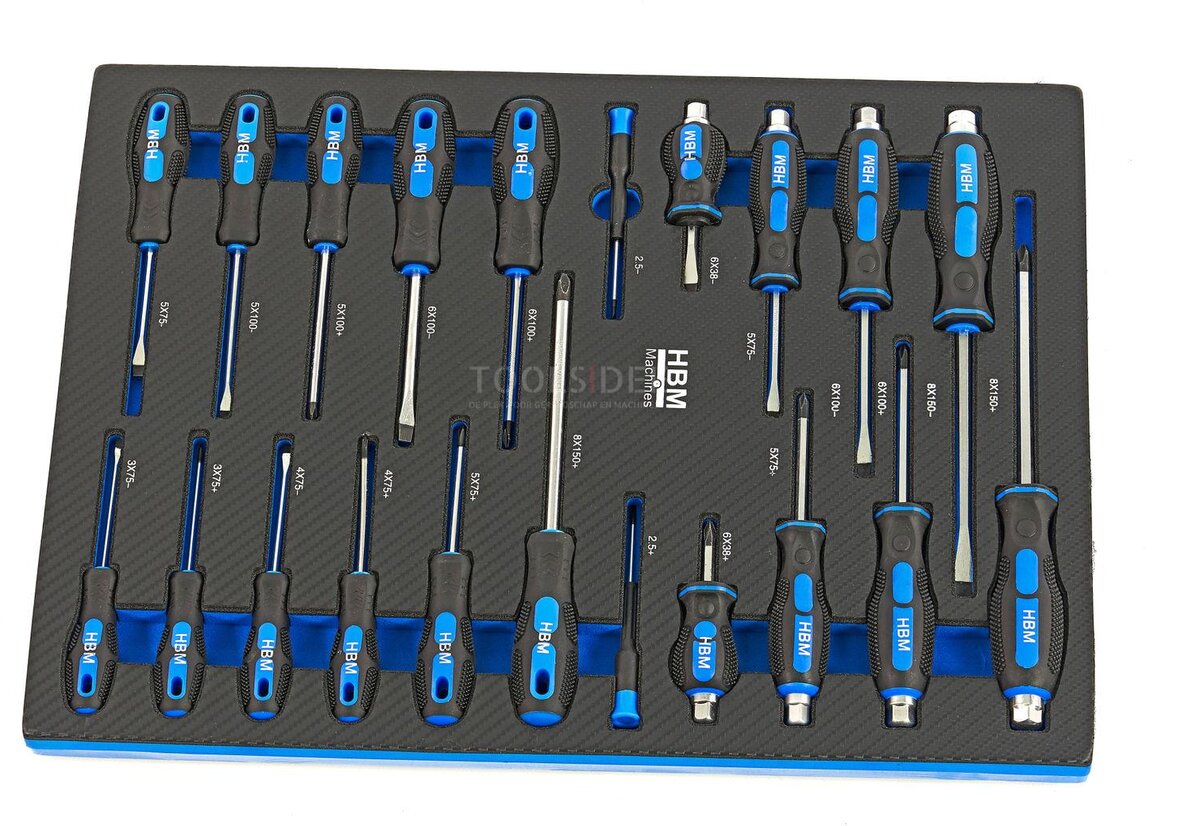

• Screwdrivers Flat (2.5x50, 3x75, 4x75, 5x75, 5x100, 6x100)
• Screwdrivers Cross (PH 2.5x50, 4x75, 4x75, 5x75, 6x100, 8x150)
• Impact-resistant screwdrivers Flat (5x75, 6x100, 8x150, 6x38 Stubby)
• Impact-resistant screwdrivers Cross (5x75, 6x100, 8x150, 6x38 Stubby)

Tray 5

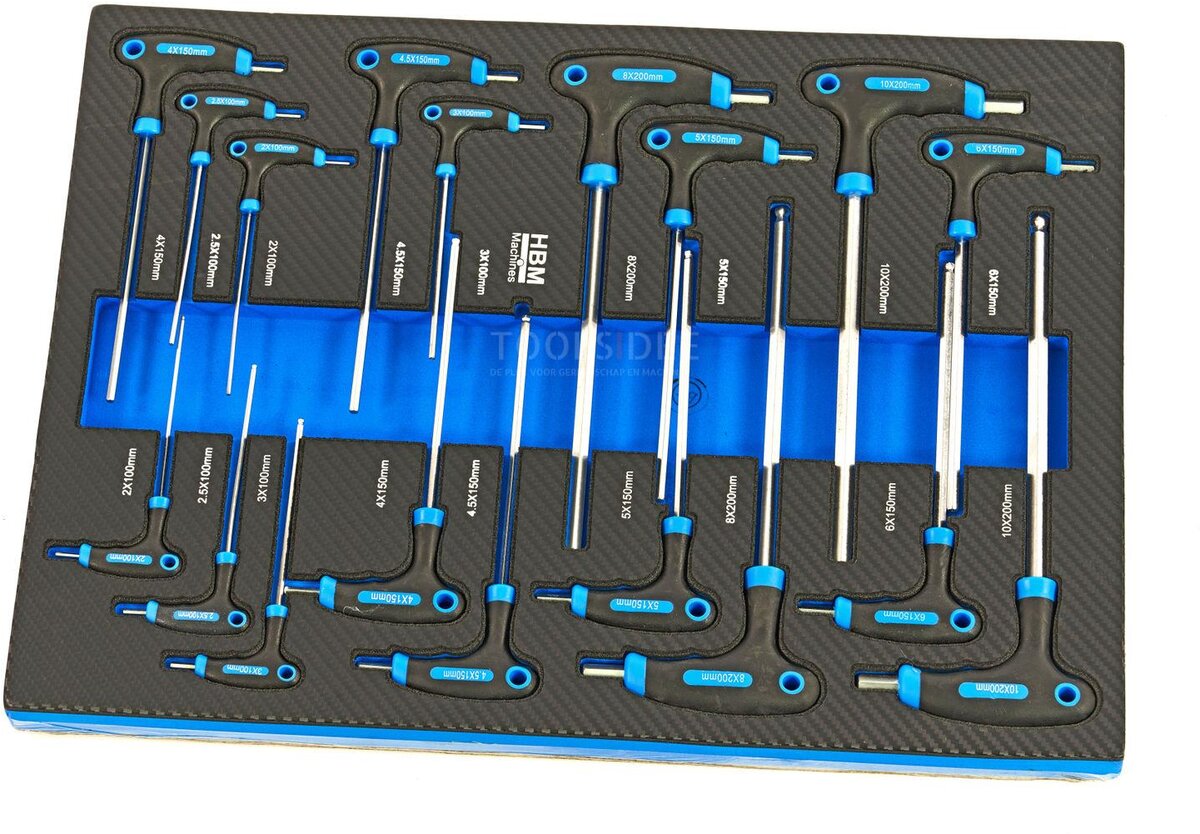

• 10 T-handle Allen with ball head (3/8 x 200 7/64 x 100, 1/8 x 100, 3/32 x 100 5/32 x 150, 3/16 x 150, 7/32 x 150, 1/ 4 x 150, 4/16 x 200, 3/8 x 200 inches x mm)
• 8 T-handle TORX (T10 x 100 mm, T15 x 100 mm, T20 x 100 mm, T25 x 150 mm, T30 x 150 mm, T40 x 150 mm, T45 x 200 mm, T50 x 200 mm)

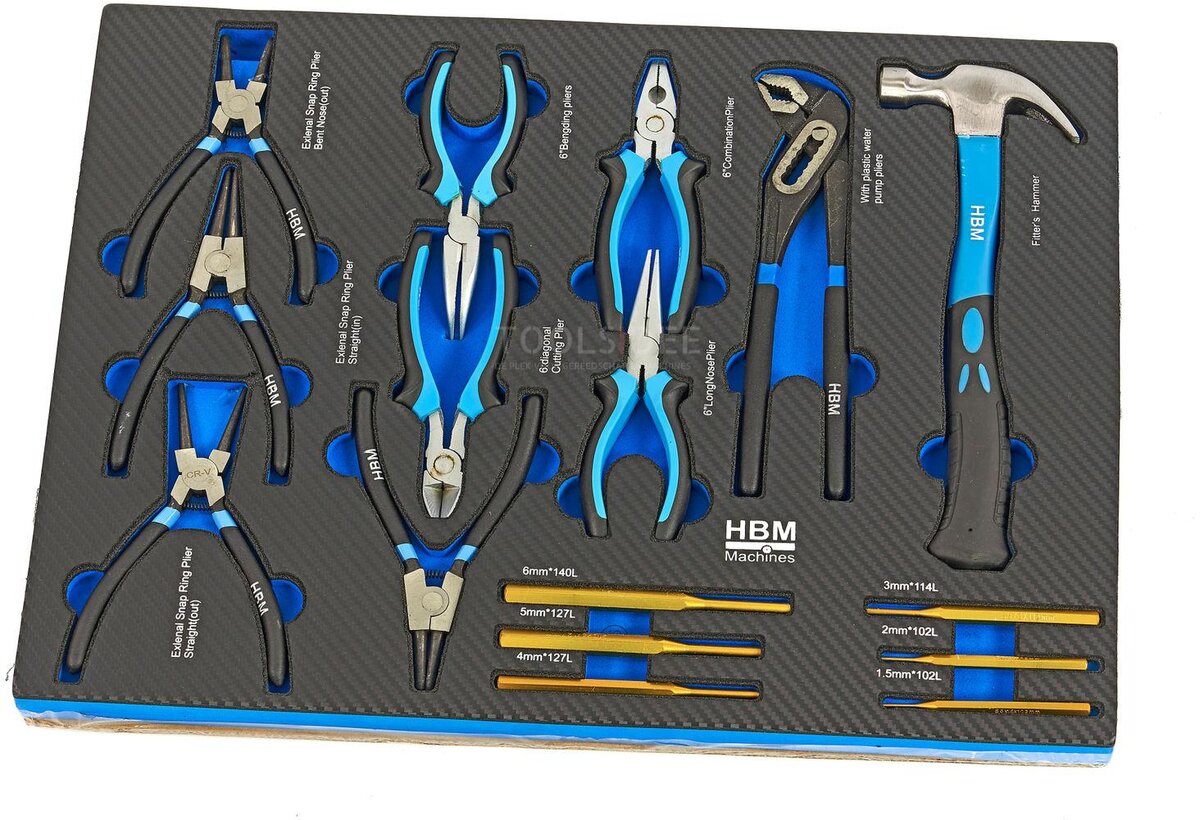

Tray 6

• Water pump pliers (250 mm)
• Combination pliers (150 mm)
• Needle nose pliers (150 mm)
• Curved Needle Nose Pliers (150 mm)
• Diagonal cutters (150 mm)
• Internal curved fuse pliers (170 mm)
• External curved fuse pliers (170 mm)
• External fuse pliers (180 mm)
• Carbon copies (1.5 x 102, 2 x 102, 3 x 114, 4 x 127, 5 x 127, 6 x 140 mm)
• Claw hammer with fiberglass handle

Tray 7

• Empty

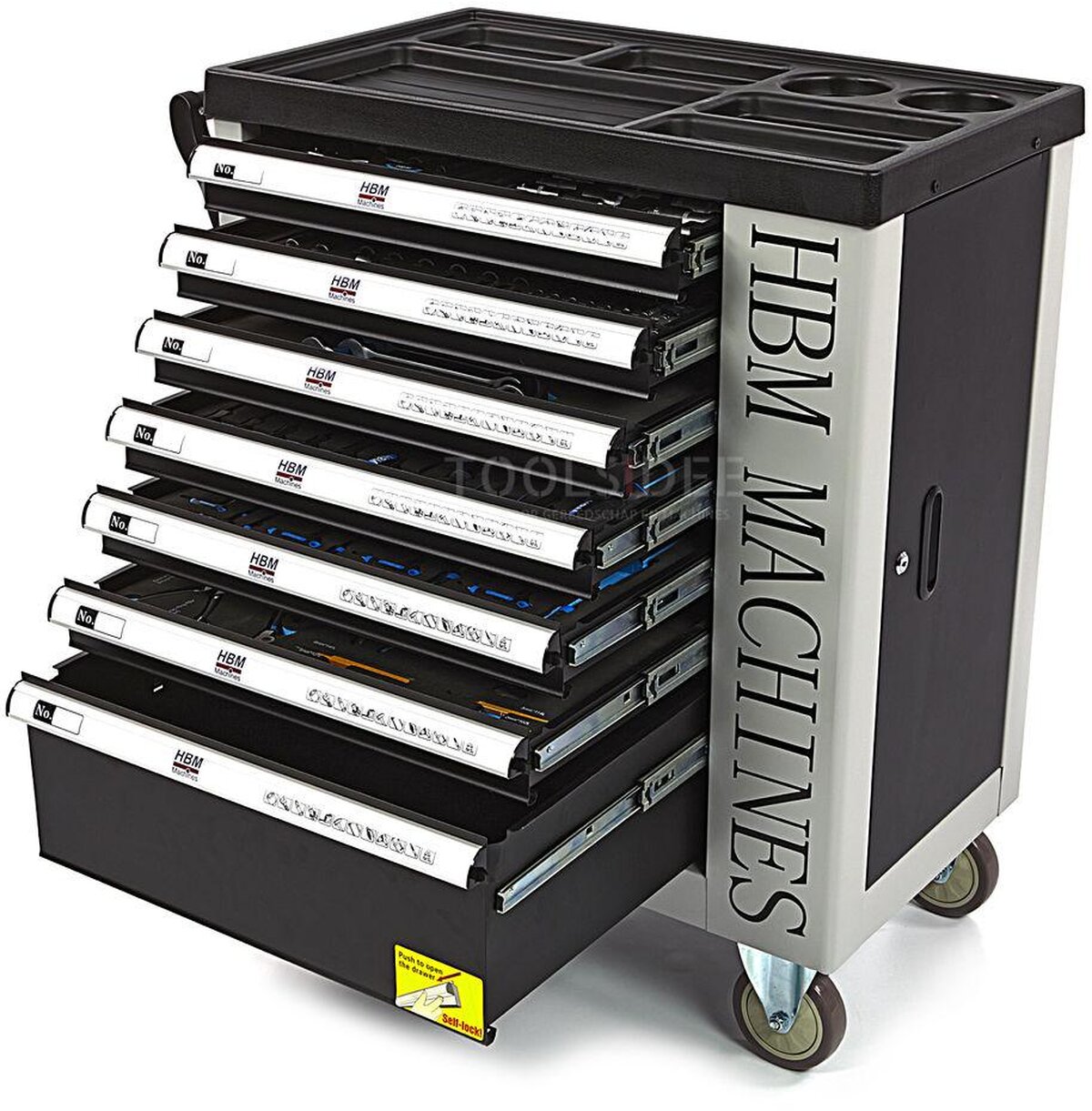

Other specifications

• Equipped with extra durable and wear-resistant CARBON look inlays

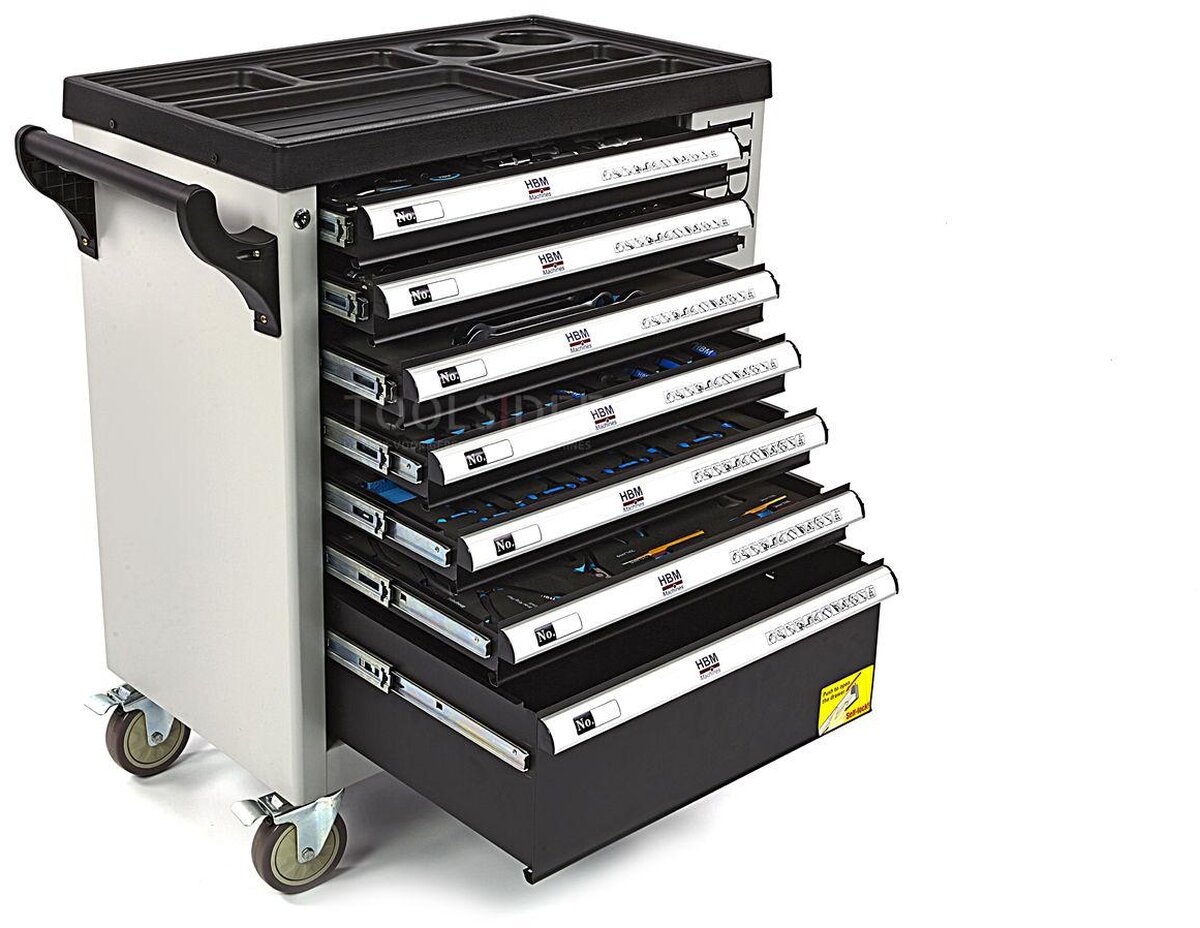

• Tool trolley is equipped with 7 drawers on bearings
• Tool trolley is equipped with 2 normal and 2 swivel wheels, 2 of which have brakes
• The tool trolley can be completely locked thanks to an integrated lock
• Drawers can be locked per drawer

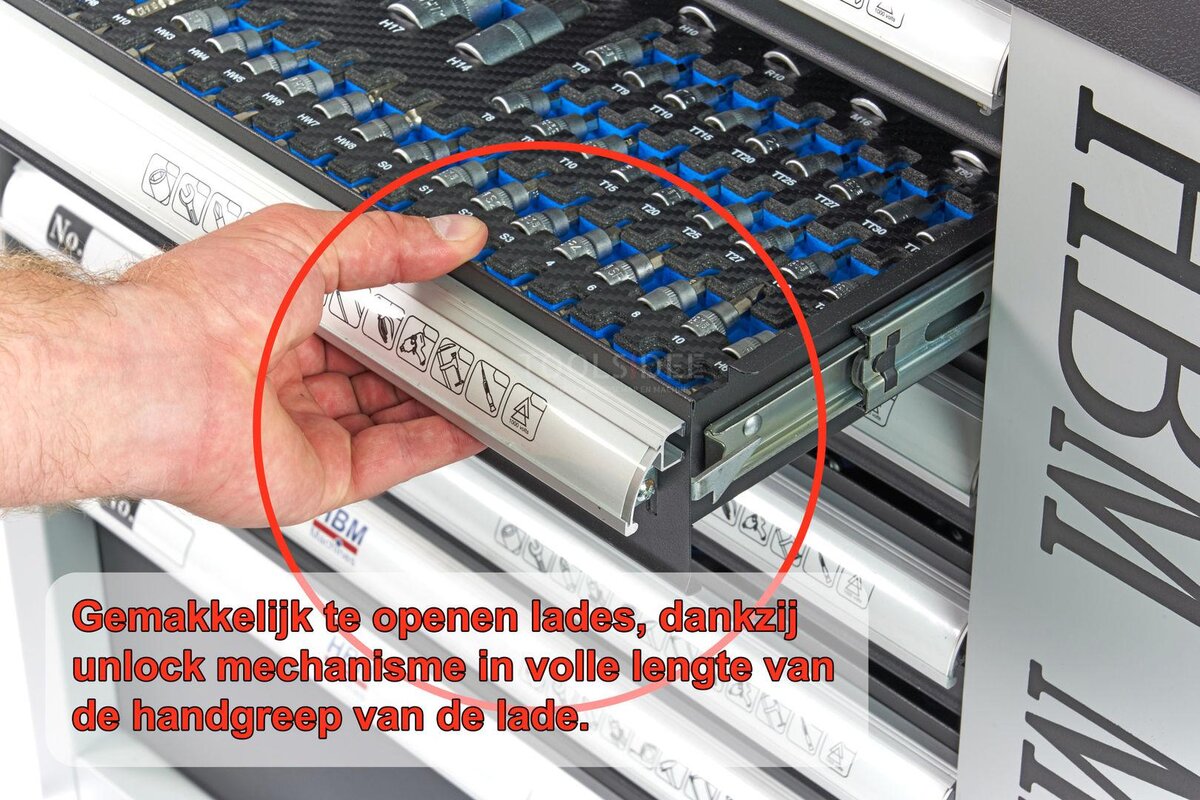

• All drawers are equipped with a lift-up closure over the entire width of the drawers and soft close
• Handy top plate with compartments and raised edge all around
• Central lock with sturdy handle

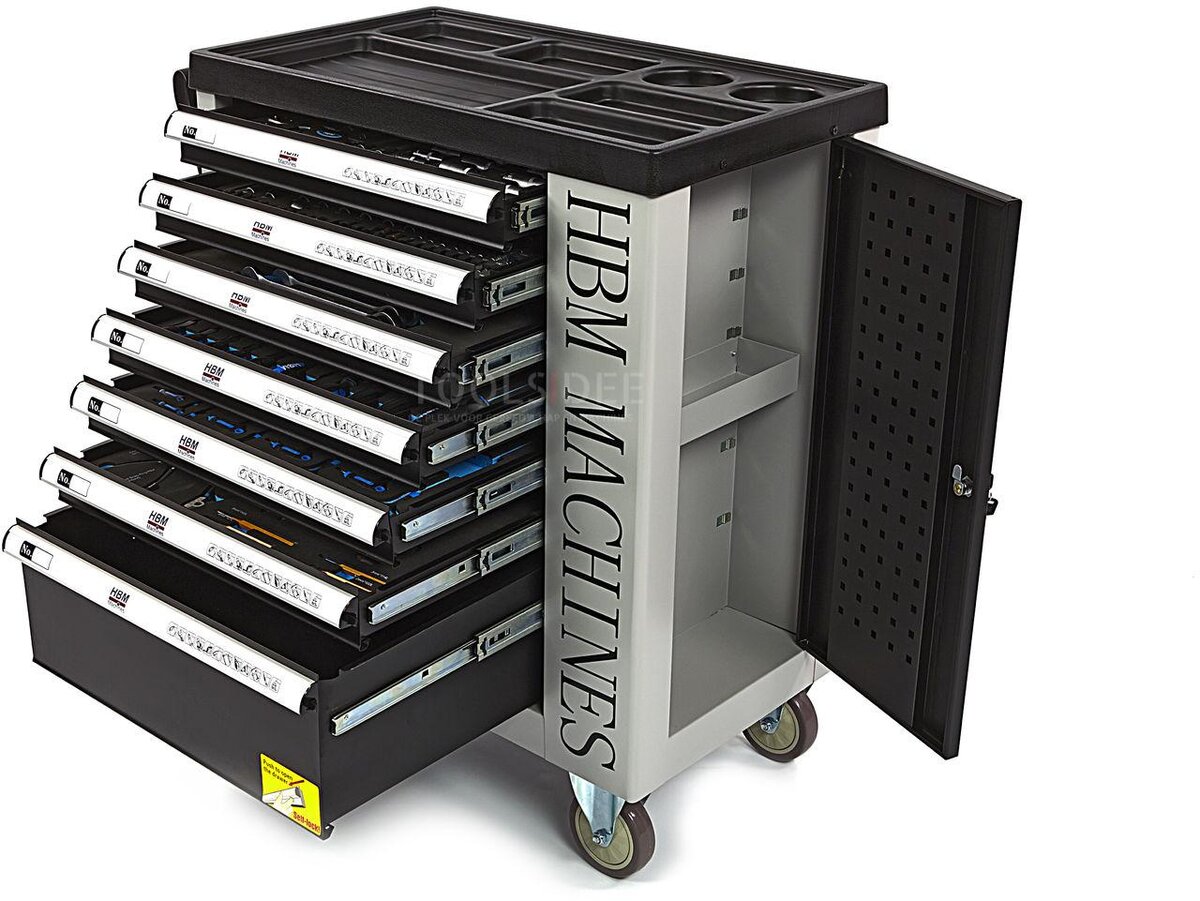

• Height-adjustable storage compartment behind the door
• Heavy quality wheels (125 x 30 mm)
• Overall dimensions with wheels and handle: 890 x 460 x 970 mm
• Total dimensions without wheels and handle: 800 x 460 x 820 mm
• Internal dimensions of drawers 1 to 6: 550 x 400 x 50 mm
• Dimensions of the 7th drawer: 520 x 400 x 200 mm
• Door dimensions: 320 x 700 mm
• Internal dimensions behind the door: 320 x 700 x 125 mm
• Packaging dimensions: 91 x 50 x 87 cm
• Weight: 70 kg

Article number: 6699-E
